-25%

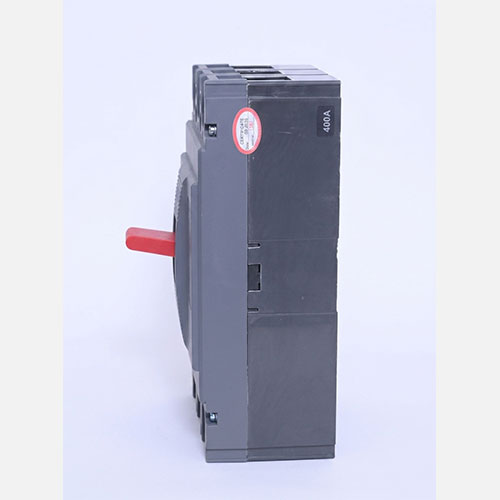

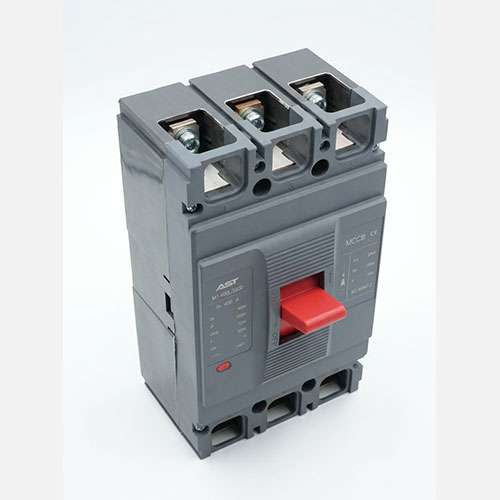

3 Pole MCCB Circuit Breaker Gray
₨ 4,050
14
Items sold in last 3 minutes
Description
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | AC 3 Pole Molded Case Circuit Breaker |
| Series | YCM7 |
| Phase / Poles | 3 Pole |
| Current Range | 32A, 40A, 63A, 100A, 125A, 160A, 200A, 250A, 400A, 630A |
| Rated Network Frequency | AC 50Hz |
| Rated Voltage Ue | AC400V / AC690V |
| Rated Insulation Voltage Ui | AC800V |
| Automatic Tripping Device | Thermo-magnetic |
| Installation Direction | Vertical or horizontal |
| Frame Groups | YCM7-125S, YCM7-160S, YCM7-250S, YCM7-400S/M, YCM7-630M, YCM7-800M |
| Short-Circuit Capacity (kA) | AC400V: 15/8, 25/18, 35/25, 50/35 across the frame groups |
| Protection Scope | Overload, short circuit, and under-voltage in distribution and motor applications |
| Standard | IEC 60947-2 |
| Price Range | Rs.5,400 (32A) — Rs.32,500 (630A) |
Additional information
| AMPERE | 100A, 125A, 160A, 200A, 250A, 32A, 400A, 40A, 630A, 63A |
|---|
