Smart WiFi Breaker 1 Pole MCB 63A | Circuit Breaker
Original price was: ₨ 6,000.₨ 4,500Current price is: ₨ 4,500.

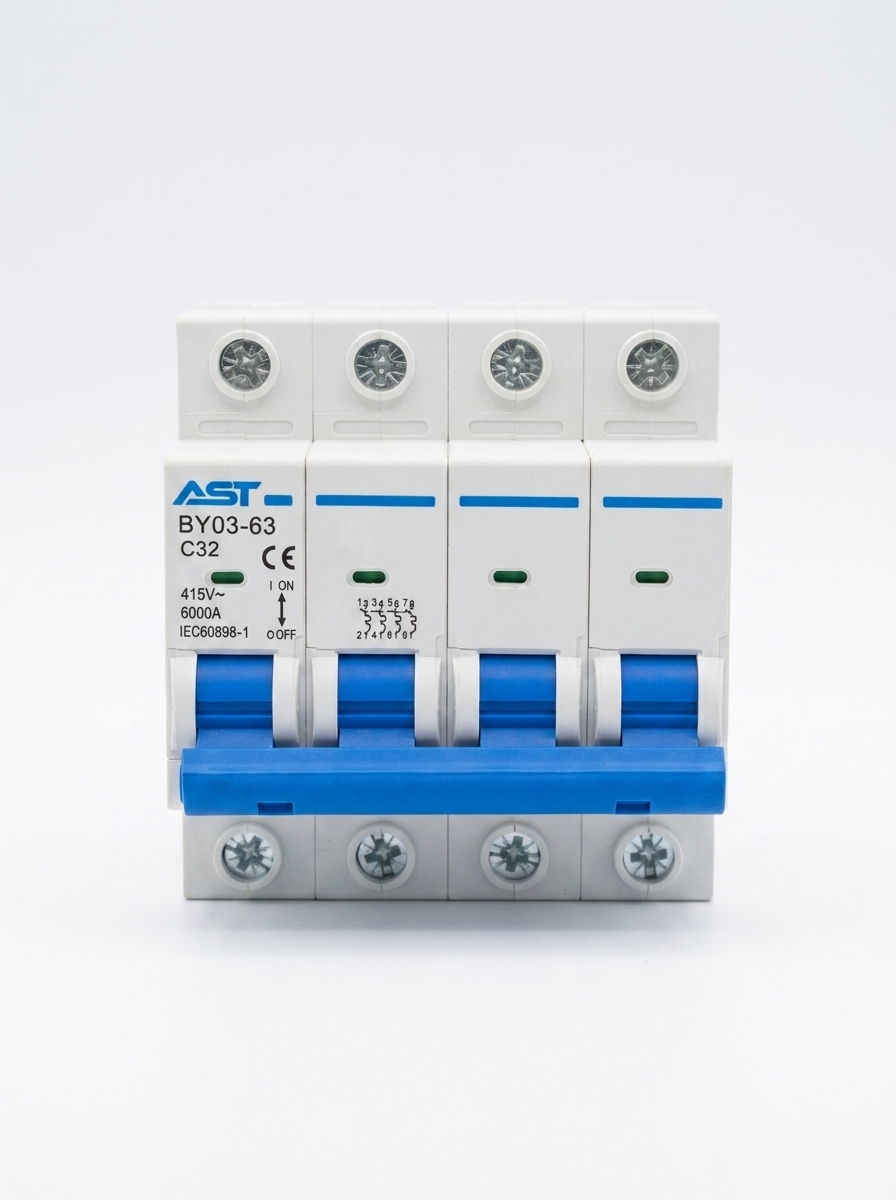

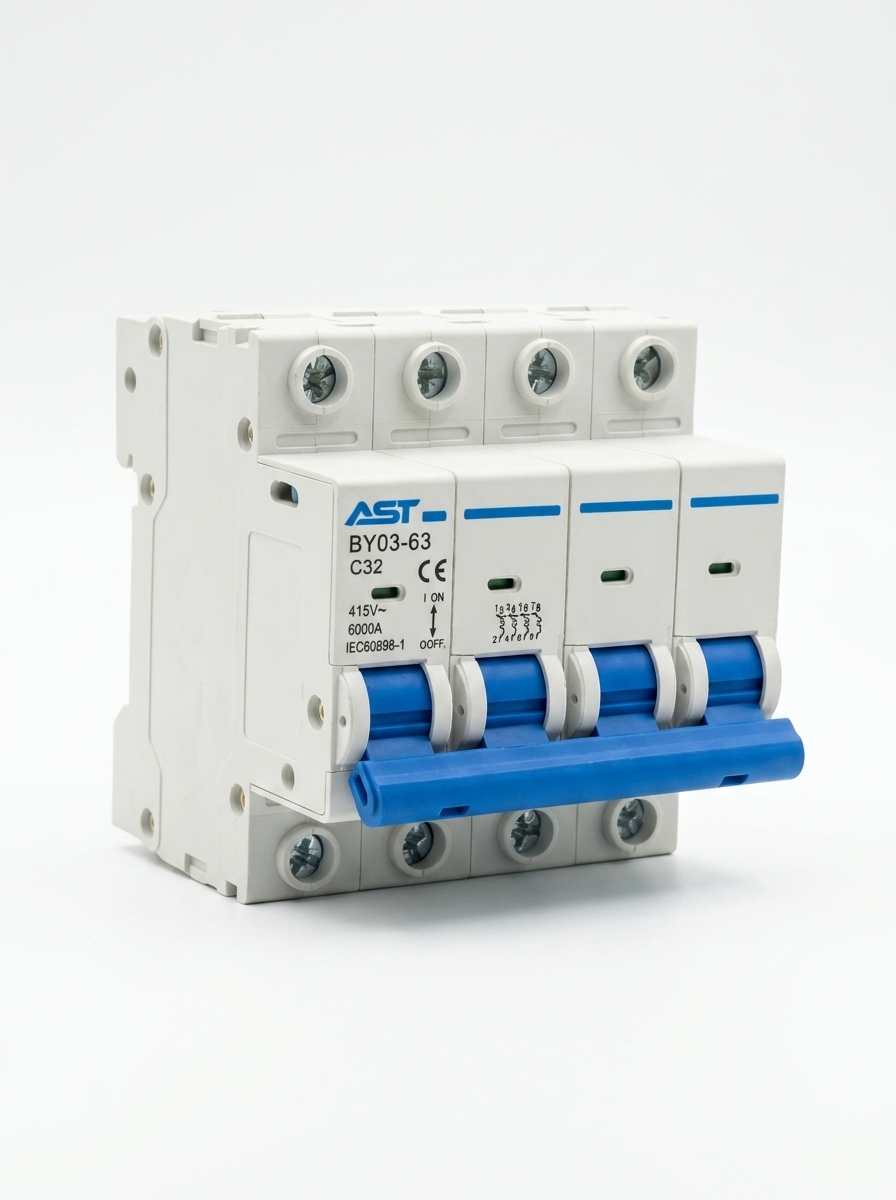

4 Pole MCB 6A-63A | Circuit Breaker
₨ 1,500
17
Items sold in last 3 minutes
Description
Specifications
| Specification | Value |
|---|---|
| Product Type | 4 Pole MCB — Three-phase + Neutral Miniature Circuit Breaker |
| Model | YCB7-63N (4P) |
| Poles | 4P (L1 + L2 + L3 + N — all four switched together) |
| Current Ratings | 6A to 63A |
| Rated Voltage | 400V AC, 50Hz (3-phase) |
| Breaking Capacity | 6kA at 400V AC |
| Trip Curve | C-curve (trips at 5-10× rated current) |
| Standard | IEC 60898-1 |
| Mounting | 35mm DIN rail |
| Module Width | 4 modules (72mm) |
| Terminal Capacity | Up to 25mm² cable |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Warranty | 5-year replacement warranty |
Additional information
| AMPERE | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 6A |
|---|
