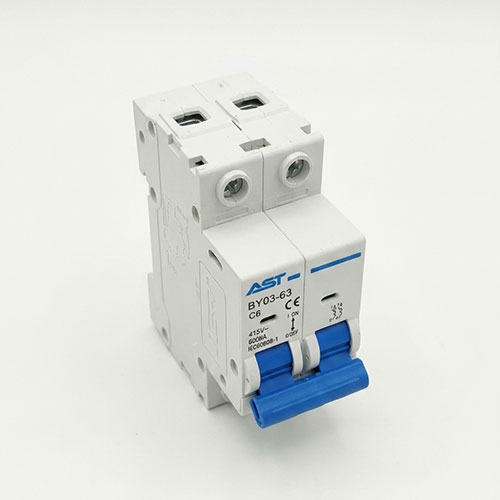

2 Pole MCB 10A-63A | AC Circuit Breaker
₨ 750
10
Items sold in last 3 minutes
Description
Specifications
| Specification | Value |
|---|---|
| Product Type | MCB — Miniature Circuit Breaker (Double Pole Safety Breaker) |
| Poles | 2P (Double Pole — disconnects live + neutral) |
| Current Ratings | 10A, 16A, 20A, 25A, 32A, 40A, 63A |
| Rated Voltage | 230V/400V AC, 50Hz |
| Breaking Capacity | 6kA at 230V AC |
| Trip Curve | C-curve (trips at 5-10× rated current) |
| Standard | IEC 60898-1 |
| Mounting | 35mm DIN rail (standard for all Pakistani DB boxes) |
| Module Width | 2 modules (36mm) |
| Terminal Capacity | Up to 25mm² cable |
| Operating Temperature | -5°C to +40°C (derates above 40°C) |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Warranty | 5-year replacement warranty |
| Delivery | Free delivery across Pakistan on orders over Rs.10,000 |
Additional information
| AMPERE | 10A, 16A, 20A, 32A, 40A, 63A, 6A |
|---|
